|Channel|Value |Function |
+-------+-------+------------------------------------------+
|1 |0-255 |Pan |
|2 |0-255 |Tilt |
|3 |0-255 |Pan/Tilt Speed from fast to slow |
|4 |0-255 |Master Dimmer |
|5 |0-255 |Strobe |
|6 |0-255 |Red Dimmer |
|7 |0-255 |Green Dimmer |
|8 |0-255 |Blue Dimmer |
|9 |0-255 |White Dimmer |
|10 | |Motor Auto/Sound control |
| |0-15 |Other Channels work |
| |16-44 |Motor Auto running 3 |
| |45-74 |Motor Auto running 2 |
| |75-104 |Motor Auto running 1 |
| |105-128|Motor Auto running 0 |
| |129-157|Motor Sound control 3 |
| |158-187|Motor Sound control 2 |
| |188-217|Motor Sound control 1 |
| |218-255|Motor Sound control 0 |
|11 |0-255 |Motor auto running speed from fast to slow|
|12 | |LED Auto/Sound control |
| |0 |Other Channels work |
| |1-7 |Gradual Change |
| |7-39 |LED Auto running 0 |
| |40-72 |LED Auto running 1 |
| |73-105 |LED Auto running 2 |
| |106-138|LED Auto running 3 |
| |139-140|LED Auto running 4 |
| |141-167|LED Sound control 0 |
| |168-195|LED Sound control 1 |
| |196-223|LED Sound control 2 |
| |224-251|LED Sound control 3 |
| |252-255|LED Sound control 4 |
|13 |0-255 |LED Auto running speed from slow to fast |
|14 |250-255|Reset after 5s |
+-------+-------+------------------------------------------+
Post ist für Kommentare geschlossen.
Your fixture request has been updated in the AtlaBase library. It will be reflected in the next rekordbox fixture library update (performed once a week on Wednesday or Thursday except for the national and company holidays). Please find the latest list of the library fixtures here (under Fixture library lists).
On behalf of Pioneer DJ,
AtlaBase Ltd

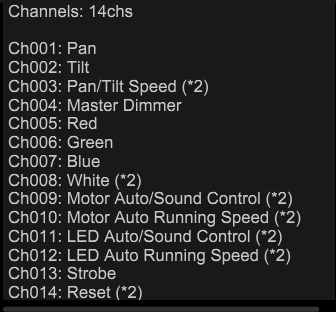

thanks for your work, i just want to mention that the 14chs fixture version is incorrect, the channel 5 is for strobe and channel 13 is for LED auto running speed, channels 5 to 13 are therefore shifted

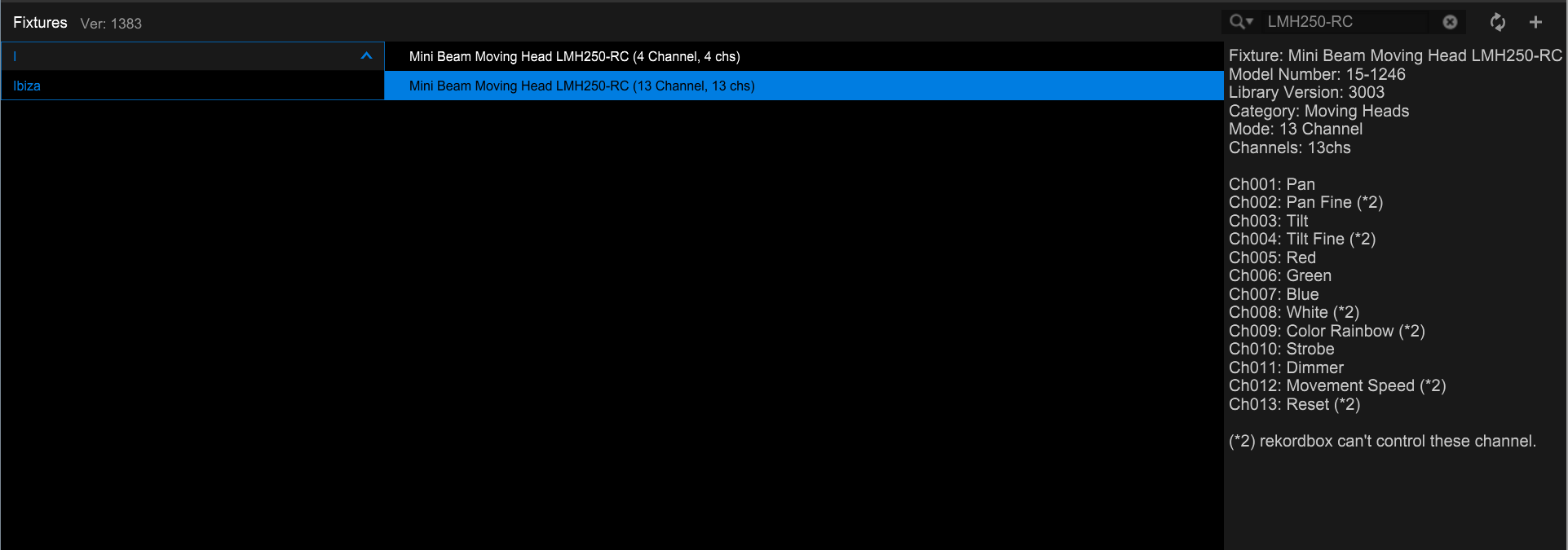

You are looking at the wrong fixture.
Updates will be made available in the next rekorbox library update. The correct fixture is this:
On behalf of Pioneer DJ,
AtlaBase Ltd
