Manufacturer: Lixada
Model: Mini LED Wash Light RGBW
Fixture Type: Moving Head
CH1: 0-255 Pan
CH2: 0-255 Pan fine
CH3: 0-255 Tilt
CH4: 0-255 Tilt fine
CH5: 0-255 Pan/Tilt Speed (slow to fast)
CH6: Effect:
0-134 Master Dimmer (0-100%)
135-255 Strobe (slow to fast)
CH7: 0-255 Red
CH8: 0-255 Green
CH9: 0-255 Blue
CH10: 0-255 White
CH11: Color Chase:
0-7 No Color Chase (Used to show rgbw color selected with Channels 7-10 + effect from channel 6)
8-134 Dimming
135-239 Strobe
240-255 Medallion
CH12: 0-255 Color Speed (preferably stays 0 if no color chase is used)
In case of any questions, don't hesitate to ask me.
Thanks in adavance :-)
Could you send us the manual for this fixture? Please take a look at this post.
We need a link to the product manual in order to complete your request.
On behalf of Pioneer DJ,
AtlaBase Ltd
Post ist für Kommentare geschlossen.
Hi,
since there is only a offline manual, I scanned it for you. But keep my list above in mind because it does not work exactly like the manual says. And I got more than one of them ;-)
Could you scan all the pages and post them here please?

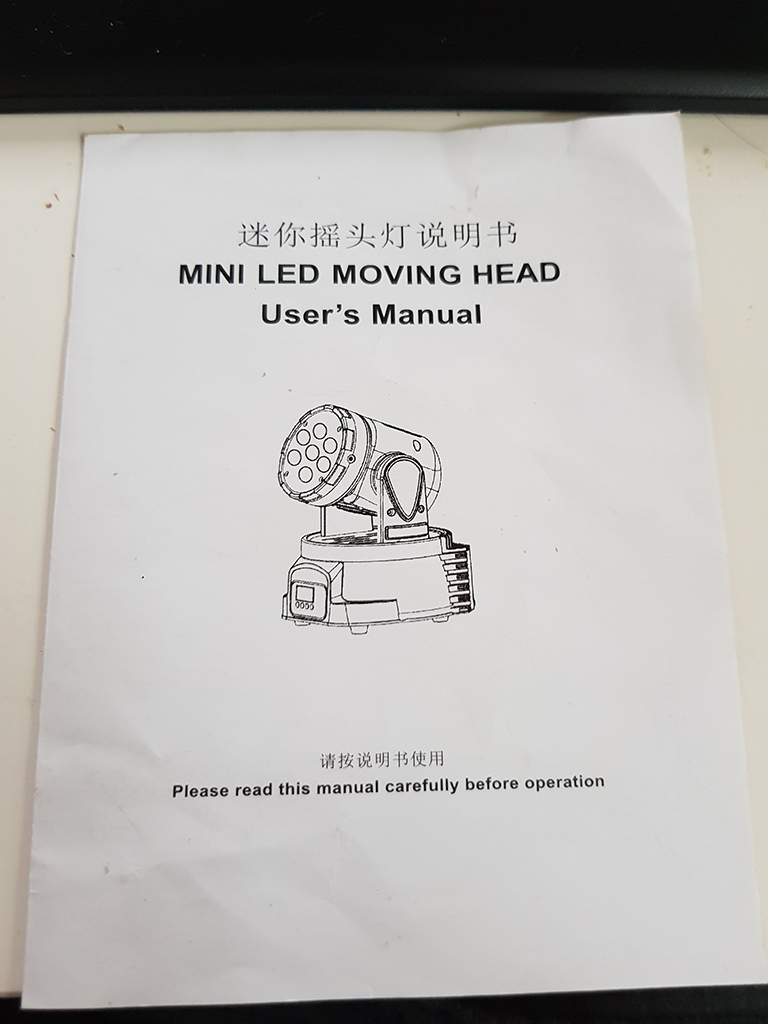

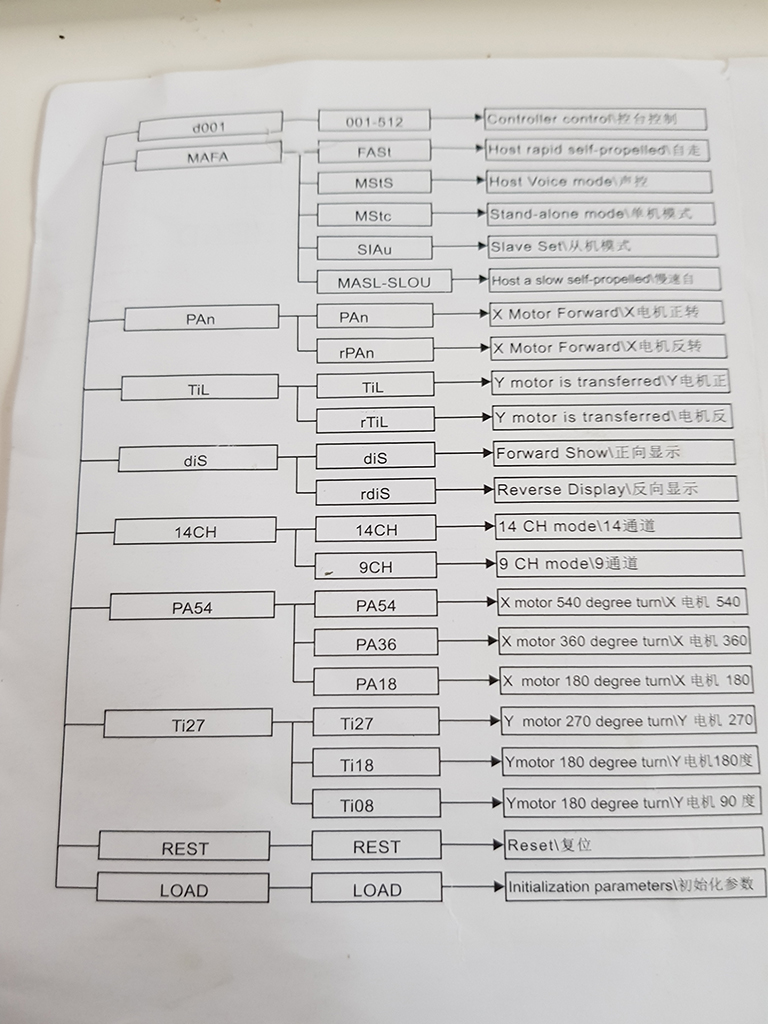

Of course, here are all 4 Pages of the manual. That's everything which was shipped with the lights.
Your lighting fixture has been added to the AtlaBase database. It will be reflected in the next rekordbox fixture library update. Please find the latest update of the fixture library here.
On behalf of Pioneer DJ,
AtlaBase Ltd
