Hi there,
I just got a new Moving Head today.
It also is a "Lixada 30W DMX512 Sound Control Auto Rotating 9 / 11 Channels Rainbow 7 Colors Changing Head Moving Light LED"
but it seems to have a different color wheel.
Everything works just like the Lixada "Mini Gobo Moving Head Light" expect the color wheel.
The colors are not documented, but I managed to figure them out with a DMX controller:
0-15 is Open/White
16-31 is Red
32-47 is Cyan
48-63 is Orange
64-79 is Blue
80-95 is Yellow
96-111 is Green
112-127 is Purple
127 to 255 is a cycling color wheel from slow to fast.
I bought this one yesterday from Amazon.de: https://www.amazon.de/gp/product/B016EICZJ0/ref=ppx_yo_dt_b_asin_title_o03_s00?ie=UTF8&psc=1
It is also linked to this page: https://www.lixada.com/p-l0818us.html
Cheers,
Björn
Post ist für Kommentare geschlossen.
Your lighting fixture (Lixada - Mini Gobo Moving Head Light 30W) has been added to the AtlaBase database. It will be reflected in the next rekordbox fixture library update. Please find the latest update of the fixture library here.
On behalf of Pioneer DJ,
AtlaBase Ltd
Could you please check the preferences in the database? There ist no movement of the gobo in automode.
in manuell mode evrything works just fine if you trigger the right gobo channel.
thank you
Could you please explain for which exact channel and DMX range are you talking about?
On behalf of Pioneer DJ,
AtlaBase Ltd
in my case in the standard mode the head just move in colur blue an sometimes red. there are no changes in other colours or switchend the gobo or mybe use the gobo shake effect.

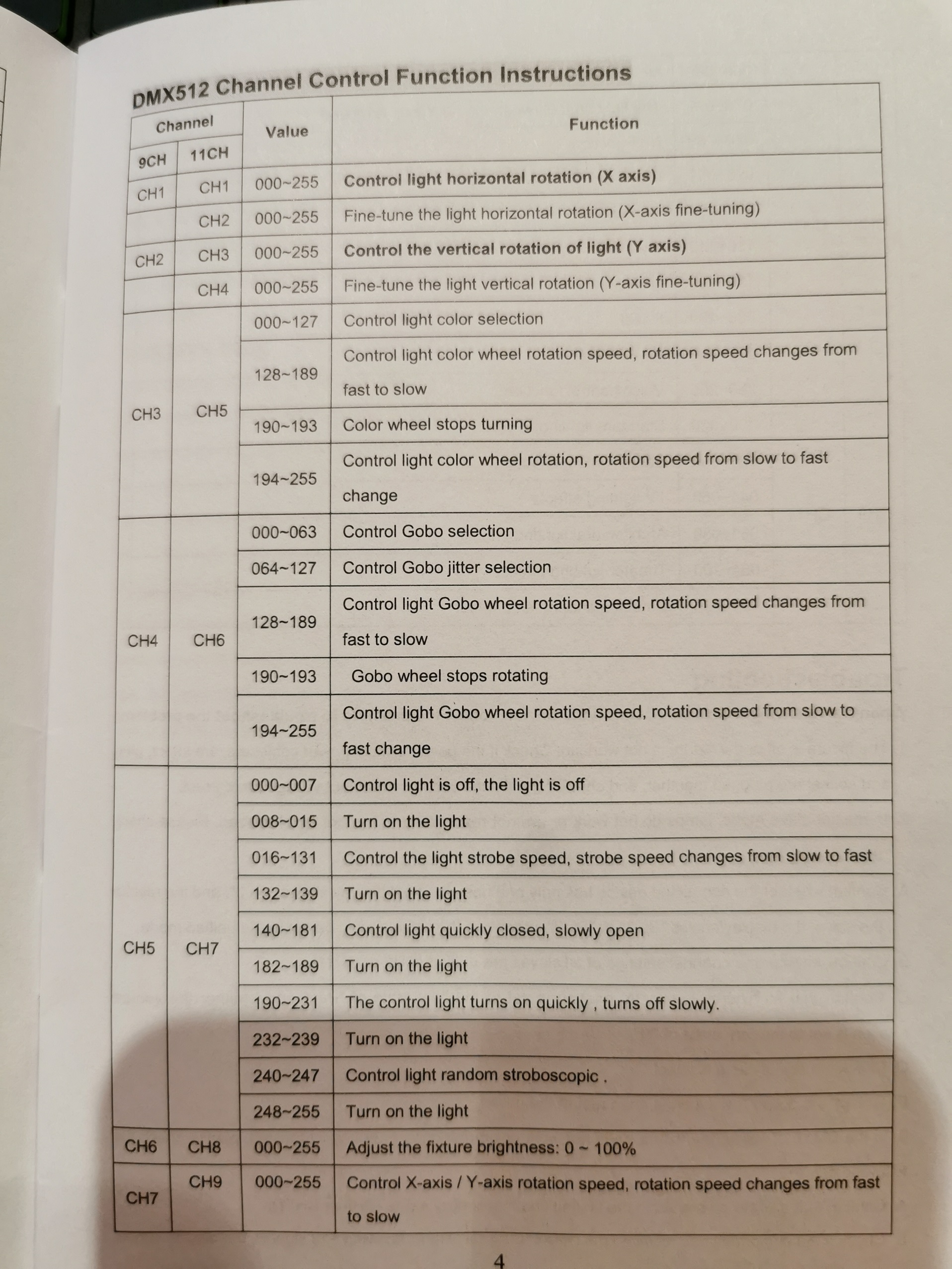

with other words all the features in the above user manuel are without function
ch3 / ch5 -> 000-127, 128-189, 190-193, 194-255 (colour)
ch4 / ch6 -> 000-063, 064-127, 128-189, 190-193, 194-255 (gobo)
These effects can only been started in the dmx direct controll setting.
As mentioned in our previous message, in order to make this work we have to know color wheel details,
for example 0-19=Red, 20-39= Blue etc. Could you please provide us with such information?
On behalf of Pioneer DJ,
AtlaBase Ltd
