Hello
I have a new fixture request. It will be a bit complicated for you because there are not really much information about this unit. It is a 36x10W Led Wash Movinghead.
I dont know really whats the name of the producing company. I think the Brand is fancycube and the name of the fixture is GLED-107.

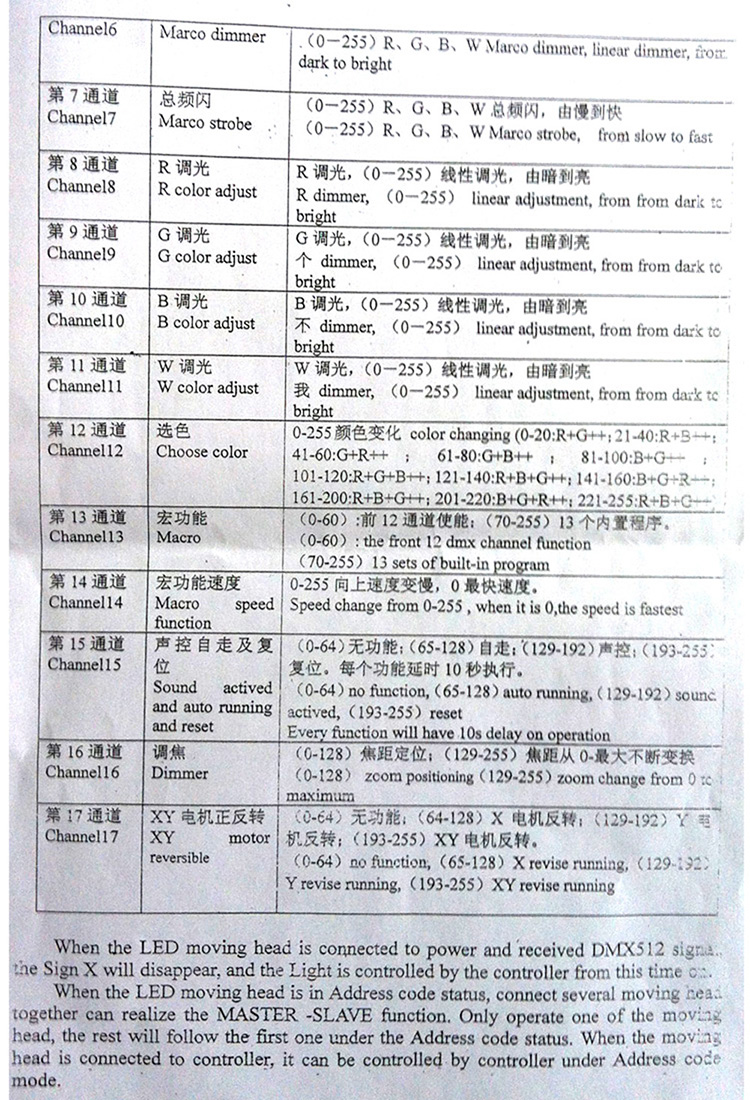

I have the list of the Channels from 6-17:
I tried Channel 1-5 by myself and thats the result:
1: Pan
2: Tilt
3: Pan Fine Adjustement ( the Movement is smaller than on Ch1 i think for more precission)
4: Tilt Fine Adjustement
5: Speed of Pan/Tilt (0 is fast 255 is slow)
Would be nice if you can add it to the fixture library.

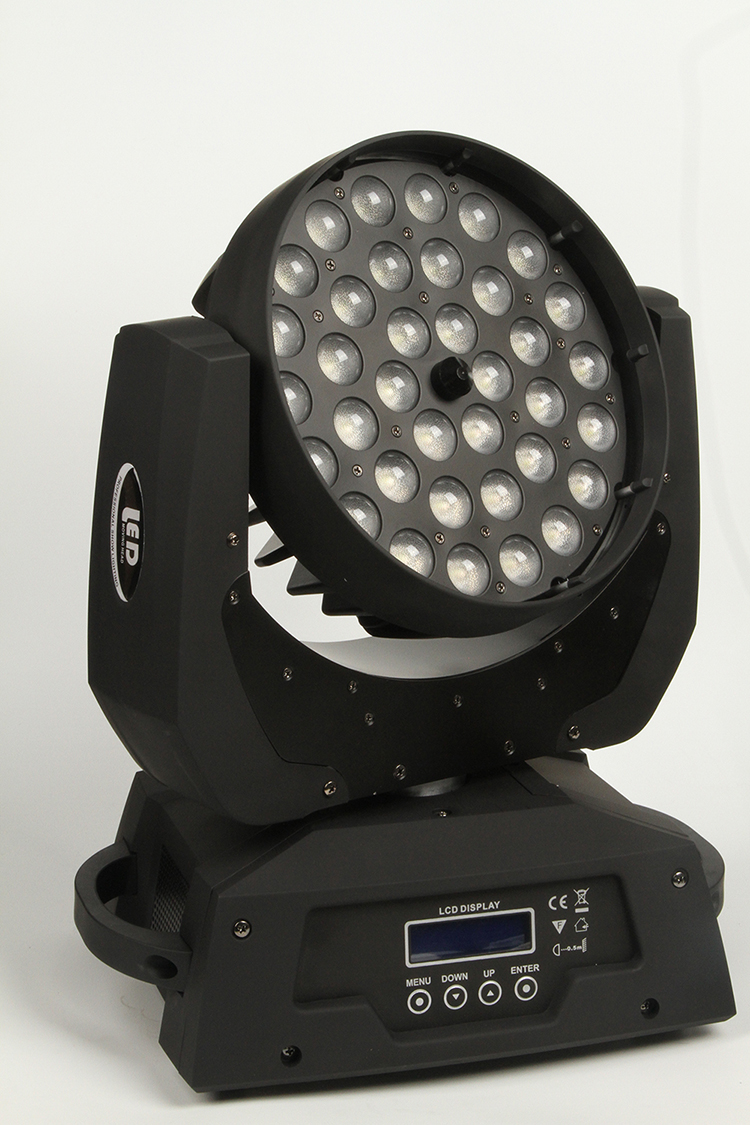

PS: Thats a picture of the fixture:
Post ist für Kommentare geschlossen.
PS: Ch16 is the zoom. Zoom means in this case the plate with the lenses over the led. Its moveable. If its in the beam is more concentrated on one point.
PS (2): If its to complicated here is what i really need:
-pan/tilt (Ch1 Ch2)
-Pan/Tilt Speed (Ch5)
-dimmer (Ch6)
-strobe (Ch7)
-red (Ch8)
-green (Ch9)
-Blue (Ch10)
- White (Ch11)
- Zoom (Ch16)
The rest can be on 0 in my case i think, maybe i need the Colour speed but im not sure.
Information is confusing. Could you please describe in one message the exact channels? Is it 16 or 17 channels totally?
On behalf of Pioneer DJ,
AtlaBase Ltd
Hello
Its exactly like in the post without the commentary. 17 Ch.
Your lighting fixture has been added to the AtlaBase library (Unknown - GLED-107). It will be reflected in the next rekordbox fixture library update. Please find the latest update of the fixture library here.
On behalf of Pioneer DJ,
AtlaBase Ltd
When is the next update?
