Manufacturer: BOTEX
Model: TITAN COLOR STROBE TCS 3000
Function: High performance XENON strobe with built in color wheel.
Online documentation: Not available (Product is EOL)
This fixture has only one mode.

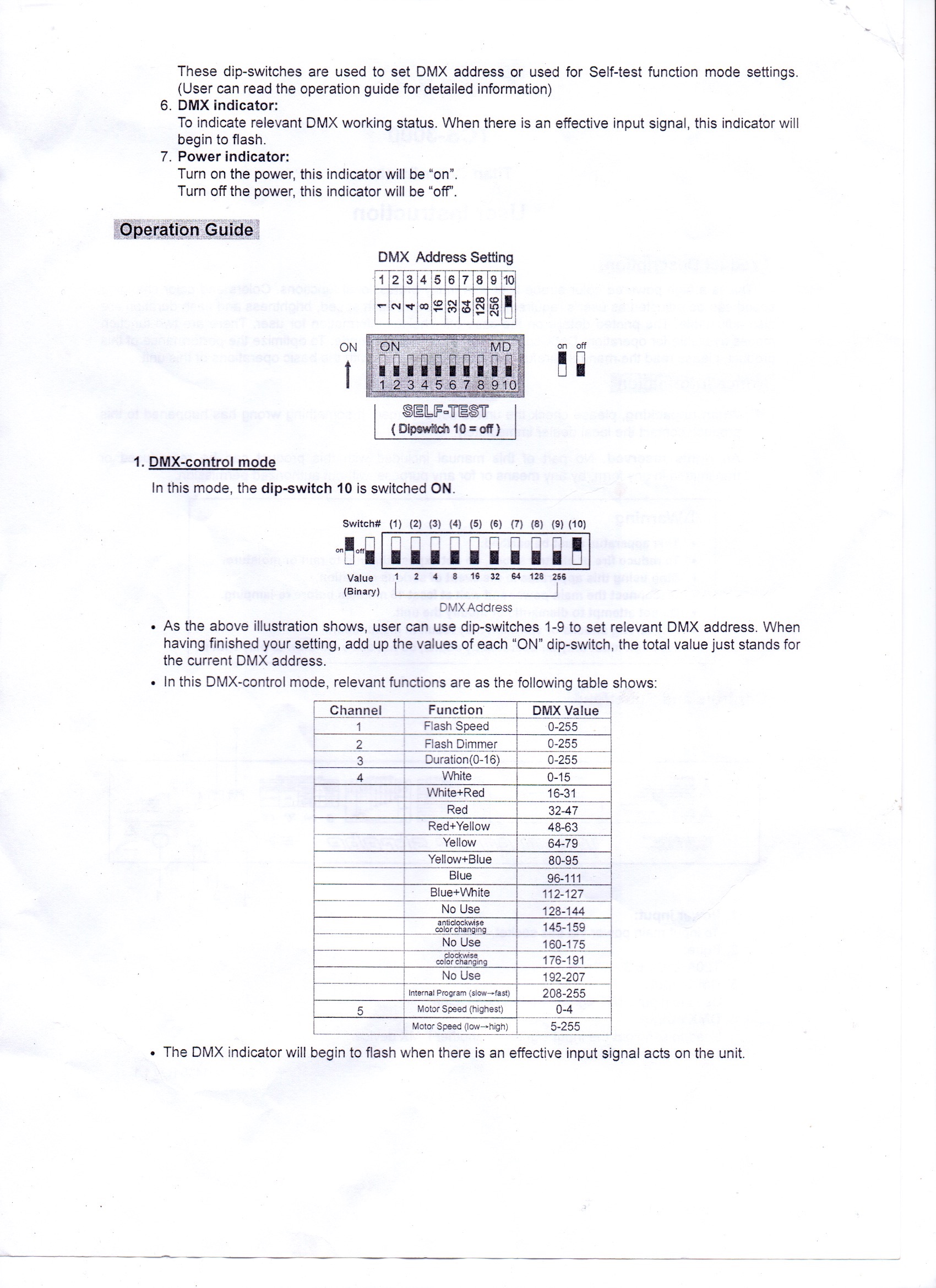

Following the channel map
Channel Function DMX Value
—————————————
1 Flash Speed 0-255
2 Flash Dimmer 0-255
3 Flash Duration 0-255
4 Colorwheel white 0-15
White + Red 16-31
Red 32-47
Red-Yellow 48-63
Yellow 64-79
Yellow+Blue 80-95
Blue 96-111
Blue-White 112-127
No Use 128-144
anti clock whise color changing 145-159
No use 160-175
clock whise color changing 176-191
internal programm 208-255
5 Motor Speed
highest 0-4
(low -> high) 5-255
Please note that even if this fixture is available within the database, it may not function as intended as rekordbox does not currently have support for colour-wheels for strobe fixtures. We hope to expand the functionality for fixtures in future but don't have a timeline available. Thank you!
Post is closed for comments.
Unfortunately, we would need a full manual in order to add this fixture. However, you can use the 'Showtec - RGB-Strobe 3000' which has the same channel structure and DMX values as the one you requested. If at any point you have the manual available, we would be happy to add the fixture for you.
On behalf of Pioneer DJ,
AtlaBase Ltd

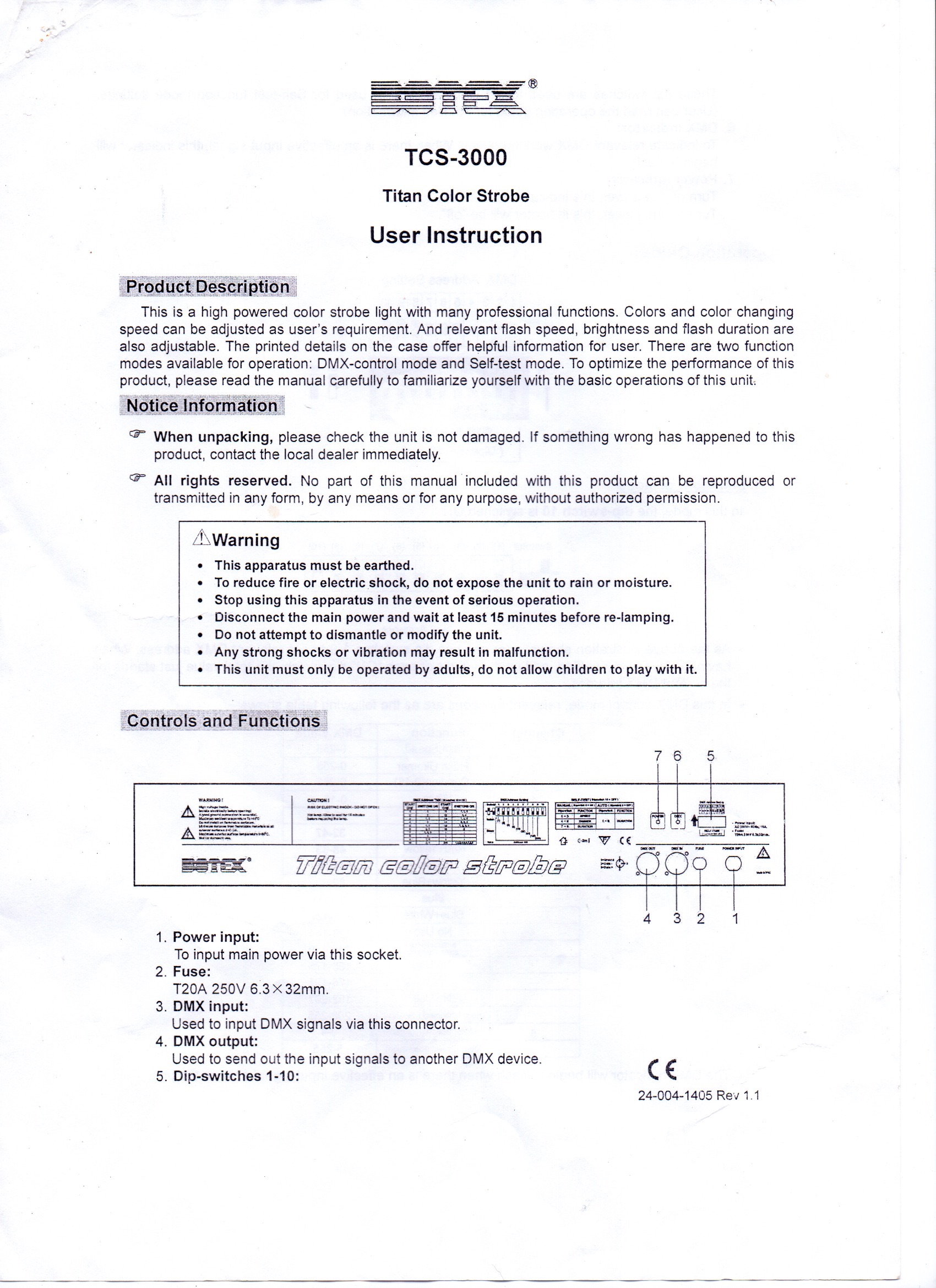

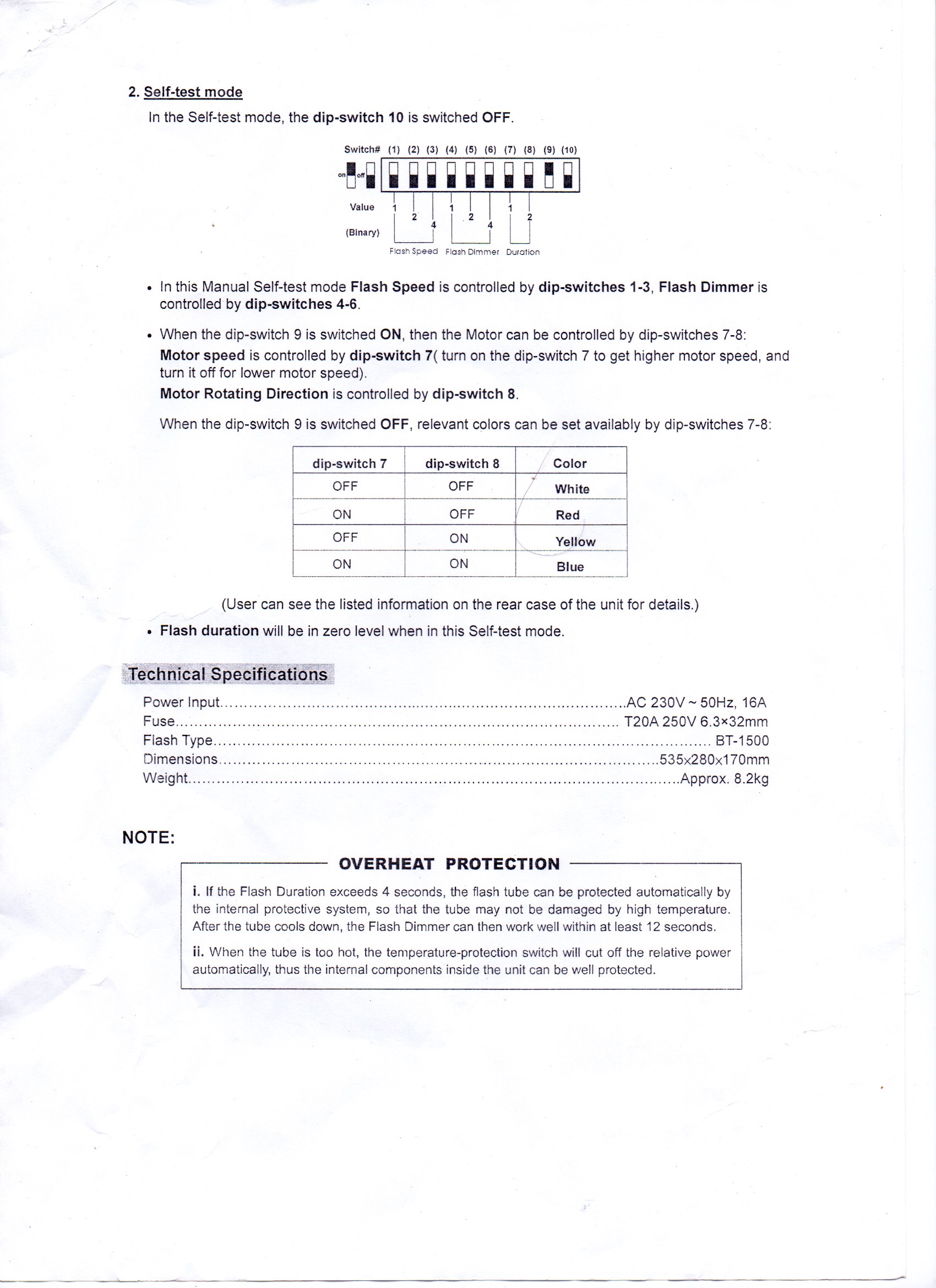

Download link of PDF: https://jvuabjsclmfuopgo.myfritz.net:43647/nas/filelink.lua?id=efb0949f46a0f3ee
Your lighting fixture has been added to the AtlaBase database. It will be reflected in the next rekordbox fixture library update. Please find the latest update of the fixture library here.
On behalf of Pioneer DJ,
AtlaBase Ltd
