Need addition of Hi-LTTE 132W BEAM for RB-DMX1

Hi,



Need the addition of the following Beam for RB-DMX1



Manufacture: Hi-LTTE

Model Rambo 2R BEAM

Specs:

URL: http://www.hi-light.com.cn/e_prodec_details.php?id=25

Voltage Range:100V~240V,50-60HZ
DMX Channels:13CHS
Control Mode:DMX512, Auto Mode, Sound Mode

Display:LCD display + press button

Color Temperature:8500K

Life Span: 2000 Hours

Light source: Phoenix Lamp 132W Beam



Color Wheel:14 colors+open,Semi color effect

Gobo Wheel:15 fixed gobo+open
Prism: 8-facet prism
Optical lens: 6 layer lens with high penetration                                                                             Focus:linear focus

Dimmer:0-100% linear dimmer
Beam Angle:0-3°
Strobe:Two pieces strobe(0.5-9 F.P.S)
Motors:10 Ultra-quiet motors,two pieces 3-phase motors,16 bit
IP rate:IP20

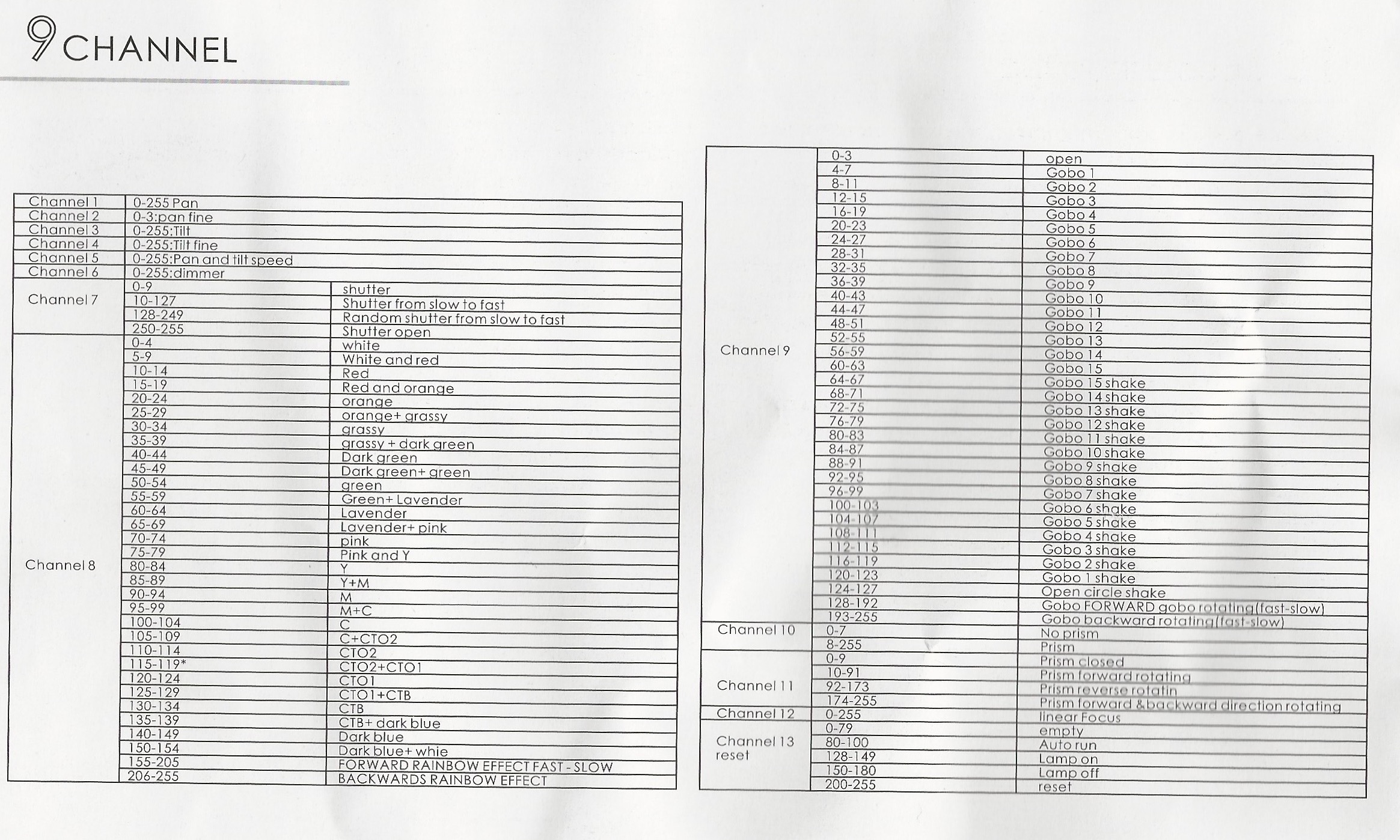

Channel Map on the website is incorrect, I have included the page from the Manual:



Sameer Completed

Please sign in to leave a comment.

5 comments

0
Avatar

There is an 132W Beam with 13 chs which fits the channel settings of my lights. I have tried that. The heads move but no light. It seems the lamps are not on. I have tested the Spots using Luminair and they work just fine with the above channel settings.



Sameer 0 votes
Comment actions Permalink
0
Avatar

The lighting fixture you requested already exists in the rekordbox fixture library as 'Unknown - 132W Beam Moving Head'.


On behalf of Pioneer DJ,
AtlaBase Ltd

AtlaBase Ltd 0 votes
Comment actions Permalink
0
Avatar

Please see my second reply above, I have tried that fixture and it does not work. The heads move but there is no light. When I use this with Luminair or any other controller the channels 6 (dimmer) is at 255 and channel 13 is not used.



Sameer 0 votes
Comment actions Permalink
0
Avatar

Any update on this guys? seems too long of a reply turn around.

Sameer Jaffer 0 votes
