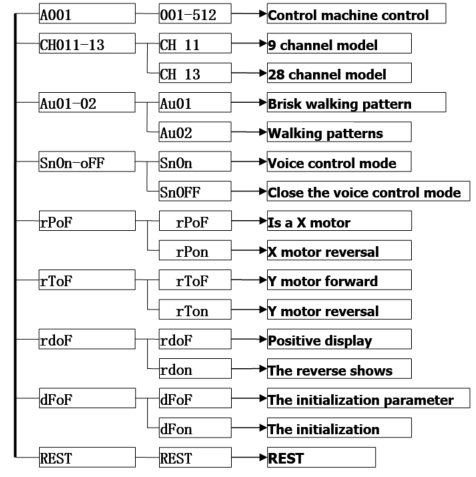

1.Digital display control operation
2.Two alternative models (13 channel)
|
channel |
function |
|
|
1 |
0-255 |
The level of |
|
2 |
0-255 |
The level of fine-tuning |
|
3 |
0-255 |
vertical |
|
4 |
0-255 |
Vertical trimming |
|
5 |
0-255 |
speed |
|
6 |
0-255 |
The dimmer |
|
7 |
0-255 |
stroboscopic |
|
8 |
0-255 |
The red light |
|
9 |
0-255 |
The green light |
|
10 |
0-255 |
The Blue light |
|
11 |
0-255 |
The White light |
|
12 |
0-255 |
Since the go |
|
13 |
150-200 |
reset |
3.Two alternative models (11 channel)
|
channel |
function |
|
|
1 |
0-255 |
The level of |
|
2 |
0-255 |
The level of fine-tuning |
|
3 |
0-255 |
vertical |
|
4 |
0-255 |
Vertical trimming |
|
5 |
0-255 |
speed |
|
6 |
0-255 |
The dimmer |
|
7 |
0-255 |
stroboscopic |
|
8 |
0-255 |
The red light |
|
9 |
0-255 |
The green light |
|
10 |
0-255 |
The Blue light |
|
11 |
0-255 |
The White light |
Rated voltage: AC85-265 - v 50 to 60 hz
Rated power: 60 w
LED: 10 w/import (CREE)
Colors: red, green, blue and white
Control mode: voice control, since go, DMX512, with the function of master-slave
DMX512 channel mode selection, 13,11 channel
Four LED display menu
Your lighting fixture has been added to the AtlaBase database. It will be reflected in the next rekordbox fixture library update. Please find the latest update of the fixture library here.
On behalf of Pioneer DJ,
AtlaBase Ltd
La publicación no admite más comentarios.
Hello,
Concerning this fixture is there anyway we could modify it so it includes the built in white light, as i have noticed after a while of using it that when the scenes have a white color for the moving head they display it as R 255 G 255 B 255 W 0 However i would prefer to have the white color as R 0 G 0 B 0 W 255, is this update possible? also i have realized that the built in white color doesn't get used in any scene or pattern as if it didn't exist.
Thank you,
Gus
