bonjour, serait il possible d'obtenir les fixtures pour un JB System LED QUADRA BEAM svp.
Merci
La publicación no admite más comentarios.
Your lighting fixture has been added to the AtlaBase database. It will be reflected in the next rekordbox fixture library update. Please find the latest update of the fixture library here.
On behalf of Pioneer DJ,
AtlaBase Ltd
Bonjour,
j'ai un soucis avec mon JB System LED QUADRA BEAM , je n'ai que des flaches et rien d'autre.
Pouvez-vous m'aider svp
merci d'avance
Could you please tell us which mode is the fixture set for (1ch or 6ch)?
On behalf of Pioneer DJ,
AtlaBase Ltd
Dear sirs.
Apologies that we were not able to reply back earlier.
Please see below from our rekordbox engineering team,
Thanks,
Pioneer DJ Support

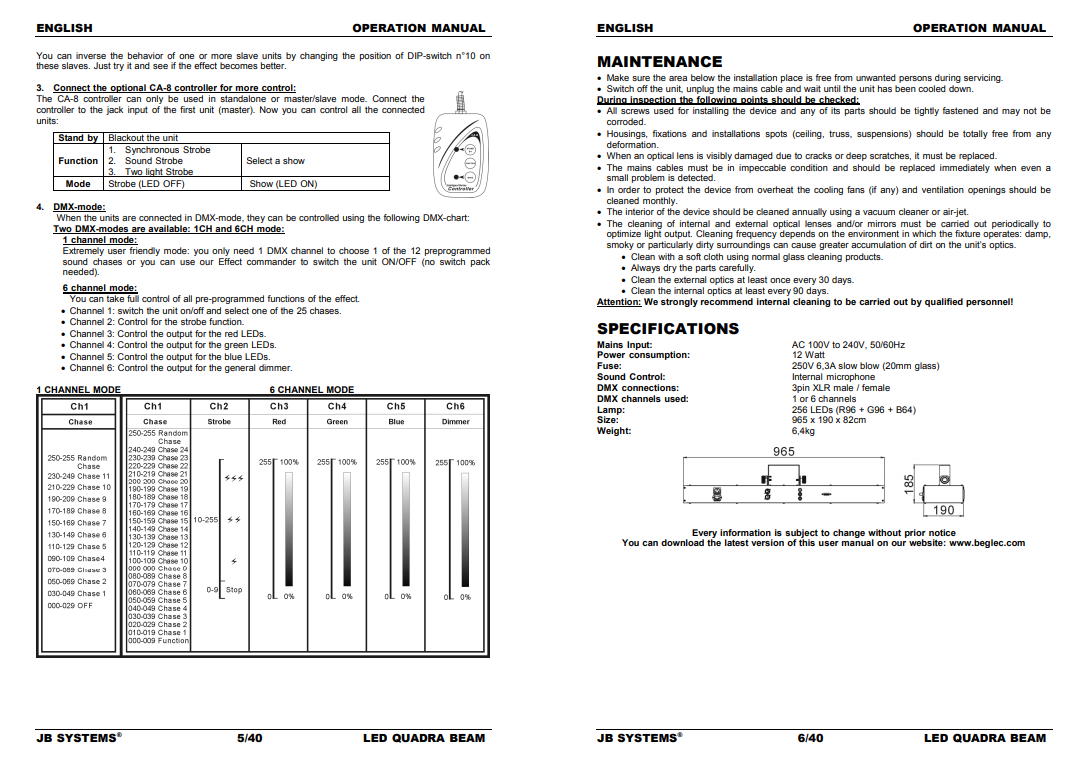

rekordbox shows the DMX address as 1-512, but the QUADRA manual shows 0-511.
This difference may be wrong.
You need to turn off DIP-switch #10 and switch it to 6ch mode.
1. Turn off all the DIP-switch #1 - #10.
2. Search QUADRA in the rekordbox FIXTURE LIBRARY and drag and drop "LED QUADRA BEAM (6 Channel mode)" to the FIXTURE LIBRARY screen 1.
We believe this will make the fixture lit as expected.
In order to check if it is correctly assigned, please click the lighting fixture which was drag and drop to the FIXTURE LIBRARY screen. If the QUADRA is lit is white, the settings are completed.
