Hi,
please add the fixture for:
I am interested in the 36 Channel mode. I use the Eurolite TMH-61 Hypno with Hypno Rings in the 29 Channel Mode. The results in the Lighting fixture with 29 channels (rekordbox is ready) are great. I hope you can program the same independent control of the hypno rings.
Thanks
Jost
La publicación no admite más comentarios.
Your lighting fixture has been added to the AtlaBase library. It will be reflected in the next rekordbox fixture library update. Please find the latest update of the fixture library here.
On behalf of Pioneer DJ,
AtlaBase Ltd
Hi,
thank you for the quick implementation of the Eurolite FE-2500 light effect. I have a few comments and a request regarding the implementation of the fixture:
The 36 channel mode unfortunately only controls the washing lights if I specify Effect 1 or Effect 2 in the category selection area. It would have been better to program the 36 channel mode as "Rekordbox ready", so that you can choose your own selection in the selection area for the washing lights, the hypno rings and the laser.

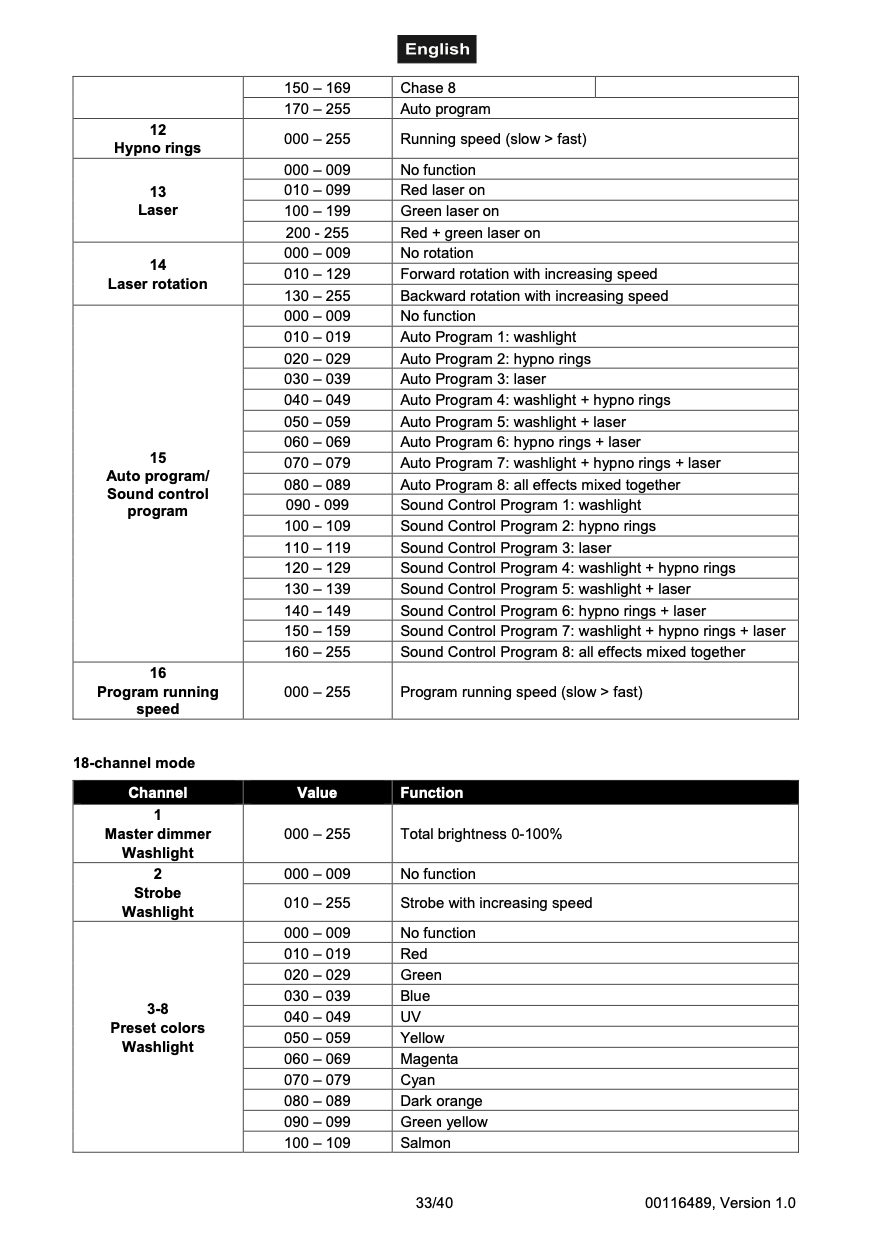

The 18-channel mode, on the other hand, is excellently implemented. Almost all possibilities of the washing lights, the Hyno rings and the laser are controlled here if effect 1 or 2 is selected in the category selection area.
In my opinion there is still a little inconsistency in the color selection of the Hypno rings: For example, if the color blue or green is selected in performance mode, the color of the washing light changes in the color selected in each case. The Hypno Rings always remain red. In contrast, when choosing white, the Hyno Rings and the Washing light shine in white.

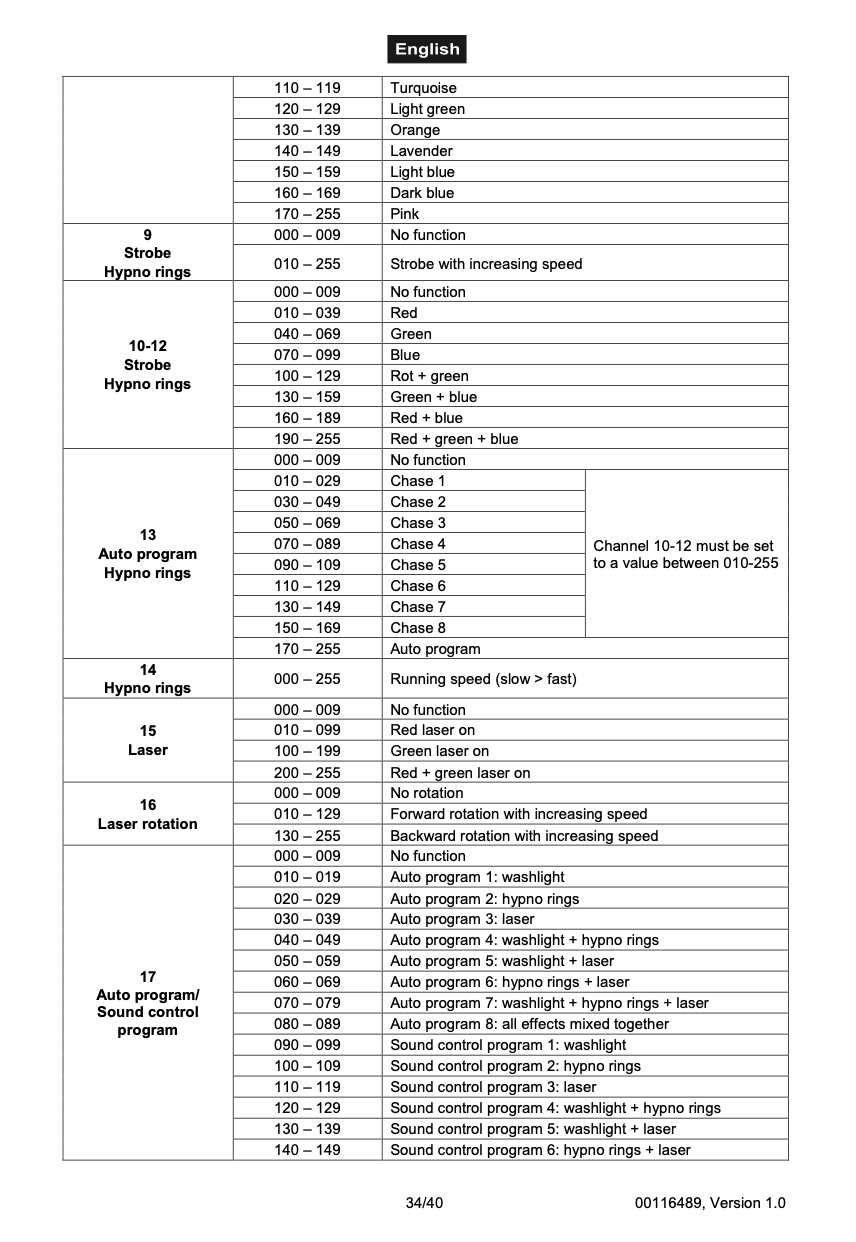

I suspect that with blue and green only the wrong values for channels 10 to 12 are sent. For red it's 0-39. However, 40-69 would have to be sent for green and 70-99 for blue.
It would be very nice if you could adjust that.
I can control this with the new DMX Direct Control function, but that doesn't seem the best solution to me. With DMX Direct it would be nice not to have only three buttoms available. 8 or even 16 buttoms would be really great.
Who do I actually have to contact to make this proposal?
Overall, I am very satisfied with the lighting function. The improvements with version 6.0 (in particular the limiting control (seating options) of the moving heads have been implemented to a great extent.
Greetings from Frankfurt / Germany
Jost
Dear Sir,
Could you please update fixture library ver1119 or later on lighting mode.
And remove this fixture from "FIXTURE LIBRARY" screen on rekordbox lighting. Then search fixture named "FE-2500", and re-assign this fixture.
Thanks,
Dear Sirs,
thank you for the new Fixture Programming. I tested the 18 Channel mode (Rekordbox ready). Great Results. Now you reached the optimum.
In my opinion there is only a little inconsistency in the color selection of the washing lights: If the color White is selected in performance mode, the color of the washing lights are yellow, Hypno rings are white.
I will test the 36 Channel mode too and will give you a feedback.
Many thanks to your team. You make a great job.
Best regards from Frankfurt
Jost
Hi Atlabase team,
I have to go back to the 18 channel "Rekordbox is ready" mode. In addition to the color error above (not corrected), there is another error that would be great to fix. The master dimmer function of the washing lights of channel 1 is not activated, i.e. the lamps are always at 100%.
Could you correct that please?
Thanks a lot for this.
Jost
Hi Atlabase Team,
unfortunately I haven't heard from you yet. Maybe you missed my last comment.I came back to my last comment. Can you correct the master dimmer Function?
Although I can also control the master dimmer function with the DMX direct control function from Rekordbox, it would of course be much better if this also worked with the master dimmer function from Rekordbox.
Thank you for the effort.
Jost
Dear Sir,

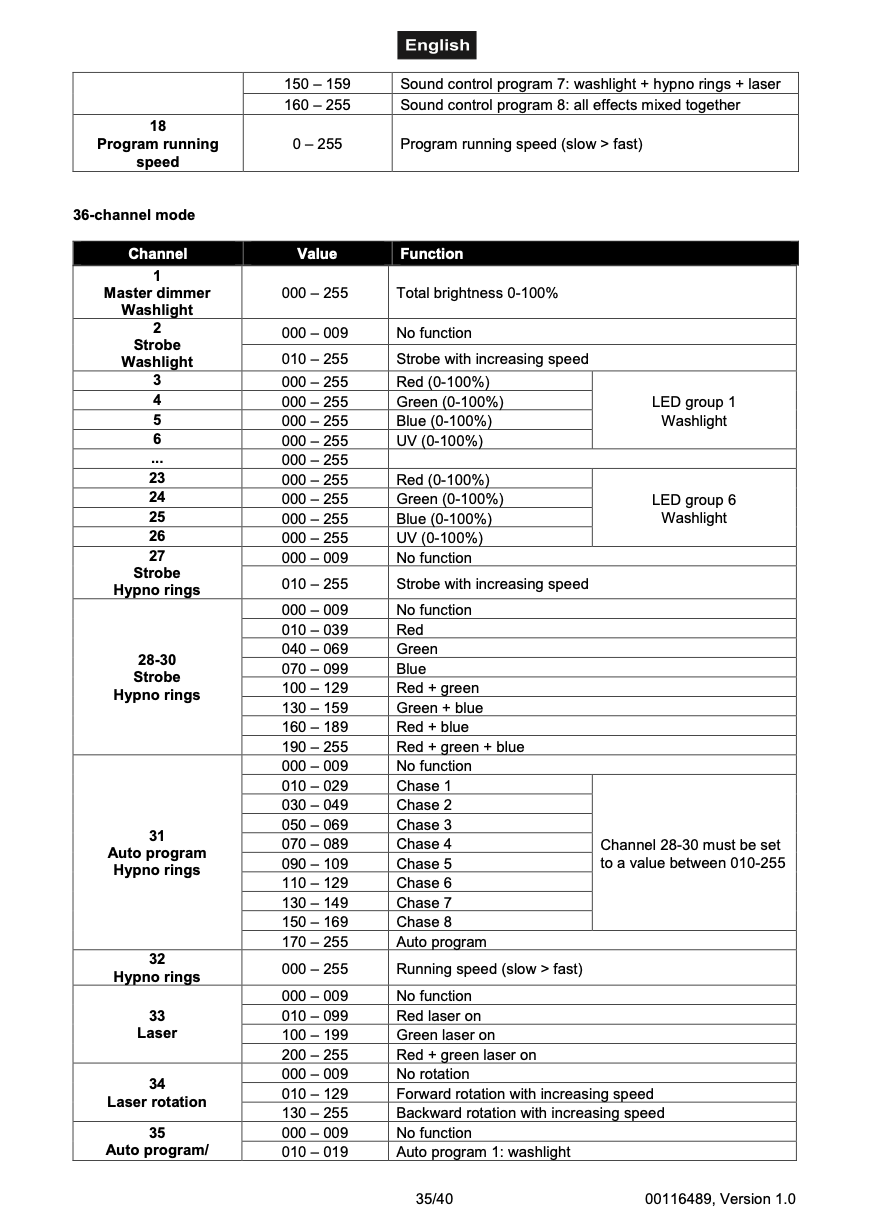

Please update the Fixture Library to ver1126 or later on rekordbox lighting mode. In 36ch mode, ch1 will be associated with DIMMER of Wash1.
Thanks,
Dear Kanta,
Thank you for adapting the Lighting Fixture EUROLITE LED FE-2500 Hypno Hybrid laser effect.
Now everything is perfectly programmed in the 36 channel mode.
Many Thanks
Jost
