hello, please add a fixture to the moving head :)

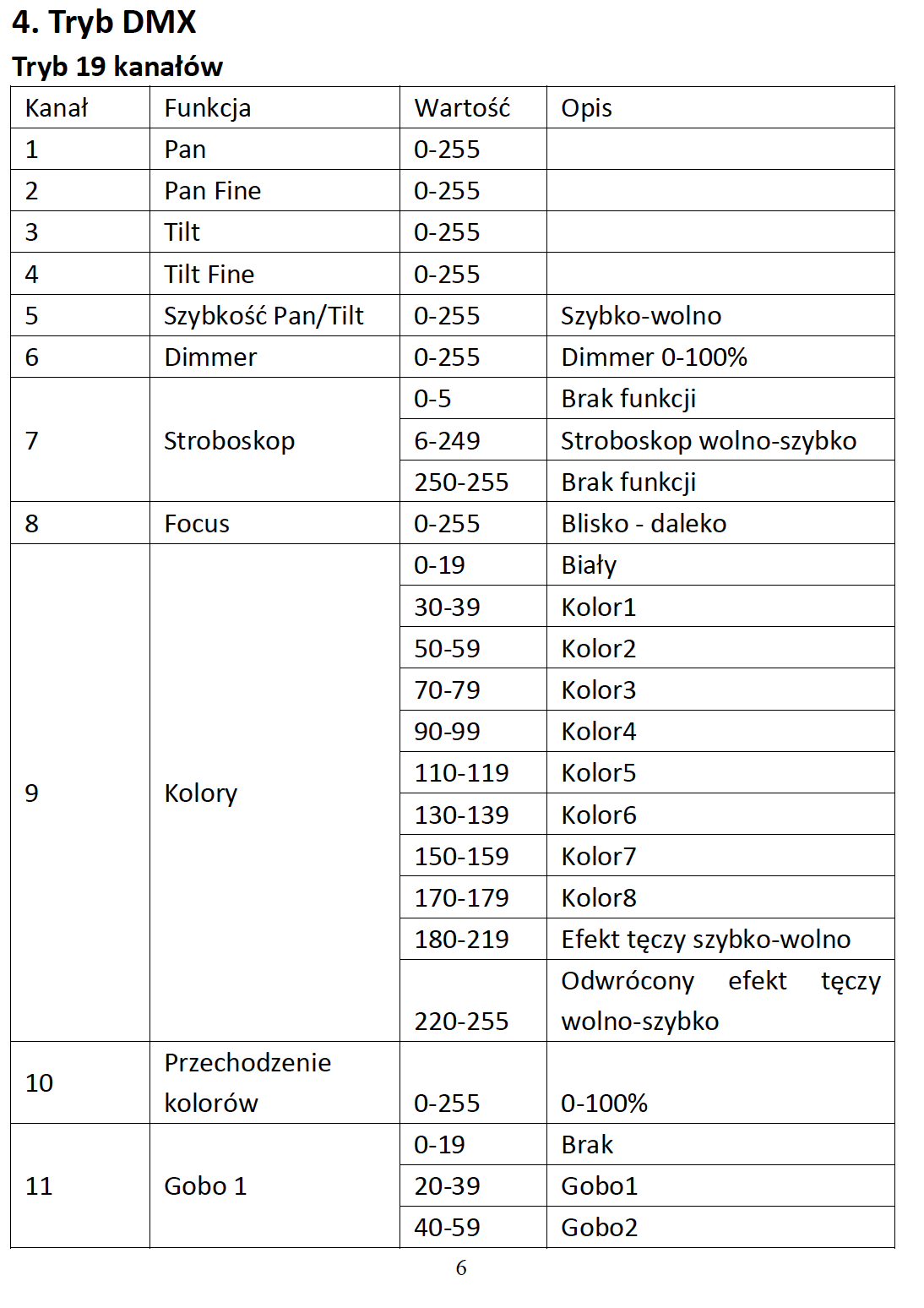

19 Channels:
1: Pan 0-255
2: microPan 0-255
3: Tilt 0-255
4: microTilt 0-255
5: Speed 0-255
6: Dimmer 0-255
7: Shuter
shuter open - 0-5
strobe - 6-250
strobe off - 251-255
8: Focus Liner 0-255
9: Color
white - 0-19
blue - 20-39
orange - 40-59
green - 60-79
cyjan (light blue) - 80-99
red - 100-119
green light - 120-139
magenta - 140-159
yellow - 160-179
clockwise roller - 180-219
anit clockwise roller - 220-255
10: Gobo1
no gobo (clear) - 0-19
gobo1 - 20-39
gobo2 - 40-59
gobo3 - 60-79
gobo4 - 80-99
gobo5 - 100-119
gobo6 - 120-139
gobo7 - 140-159
rotation - 160-199
inverted rotation - 200-255

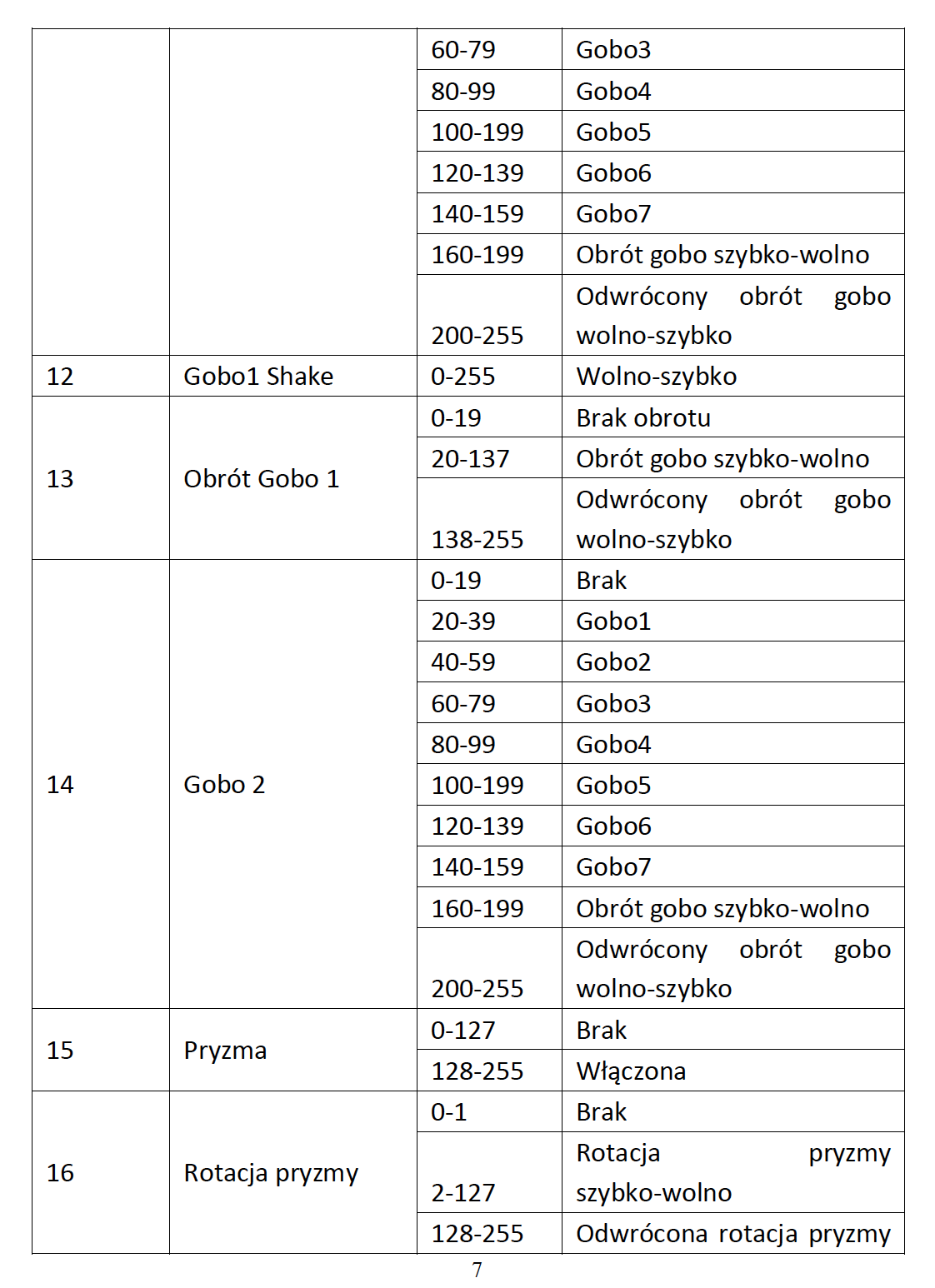

11:Gobo shake 0-255
12: Rotation gobo
rotation off - 0-19
clockwise roller - 20-137
anit clockwise roller - 138-255
13: Gobo2
no gobo (clear) - 0-19
gobo1 - 20-39
gobo2 - 40-59
gobo3 - 60-79
gobo4 - 80-99
gobo5 - 100-119
gobo6 - 120-139
gobo7 - 140-159
rotation - 160-199
inverted rotation - 200-255
14: Collor Mixing 0-255
15: Prism
no prism - 0-127
prism 3f - 128-255
16: Rotation prism
rotation off - 0-1
clockwise rotation - 2-127
anit clockwise rotation - 128-255

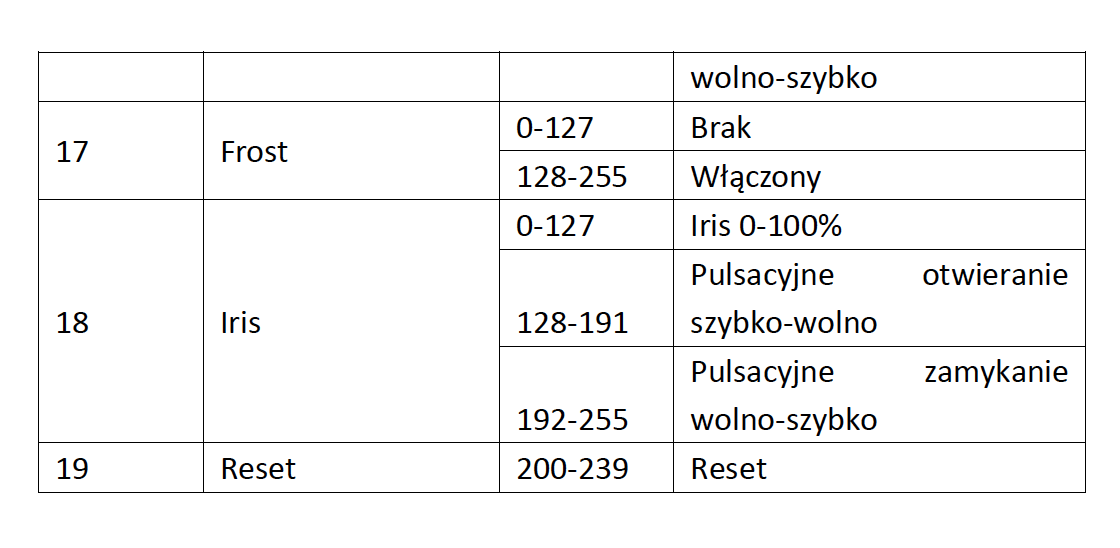

17: Frost 0-255
18: Iris
iris linear 0-127
iris pulse open 128-191
iris pulse close 192-255
19:Reset
lamp on 0-199
reset 200-255
Thanks :)
La publicación no admite más comentarios.
Could you send us the complete manual for this fixture? Please take a look at this post.
We need a link to the product manual in order to complete your request.
On behalf of Pioneer DJ,
AtlaBase Ltd

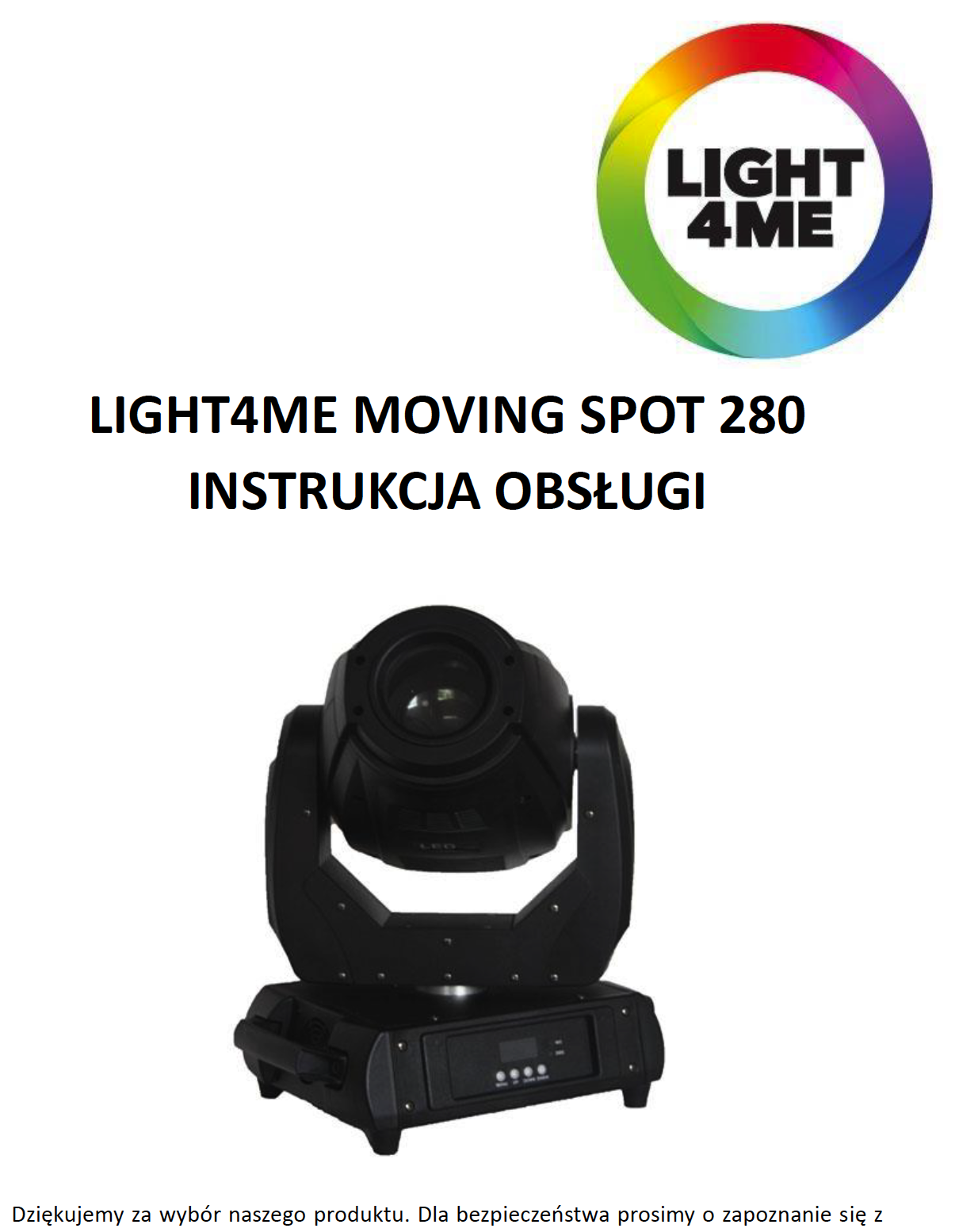

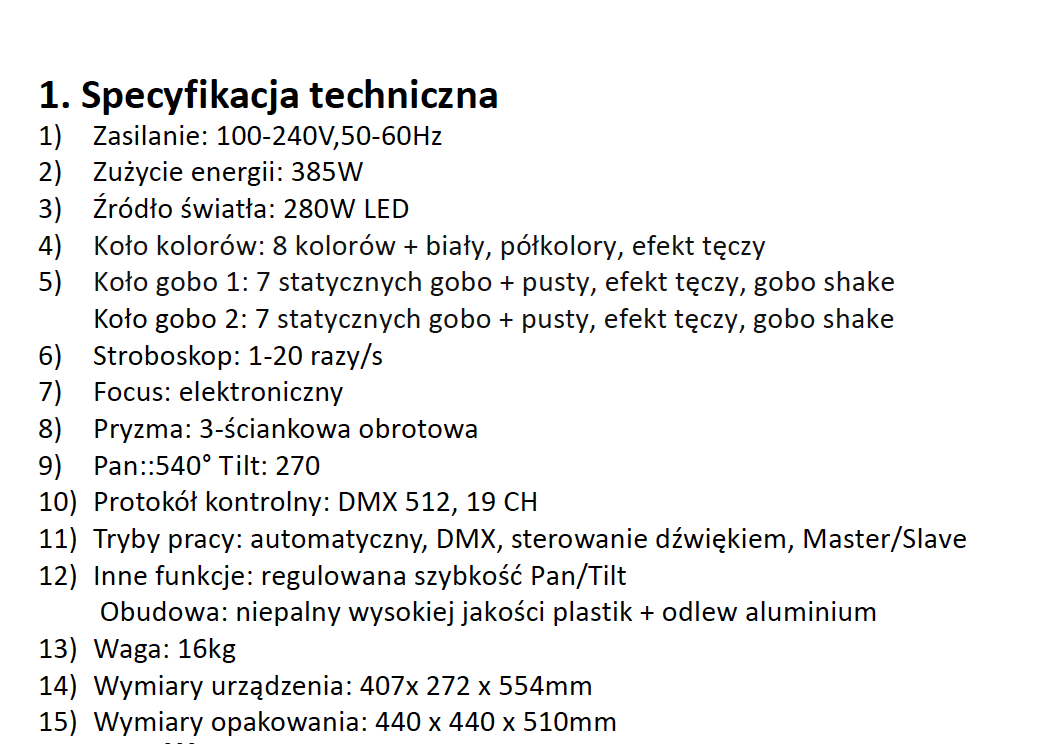

I am sending device instructions. The instruction manual is only in Polish. Should I translate it?
Your lighting fixture has been added to the AtlaBase library as 'Light4Me - Moving Spot 280'. It will be reflected in the next rekordbox fixture library update. Please find the latest update of the fixture library here.
On behalf of Pioneer DJ,
AtlaBase Ltd
