Hi! Just trying to resolve weird issue with XDJ-RX and rekorbox link via LAN. Rekordbox see the controller, can link to it and send song list to it, so I can use knob to select the song. Once I press load, only "Now Loading" is flashing and nothing happens.
Both PC and XDJ are connected to the same LAN network by cables. LAN network has access to the internet. As the router/switch I have MikroTiK RB951-2HnD.
When I connect PC and controller directly by LAN cable, it works fine, so it's rather obvious, that it's something wrong with router.

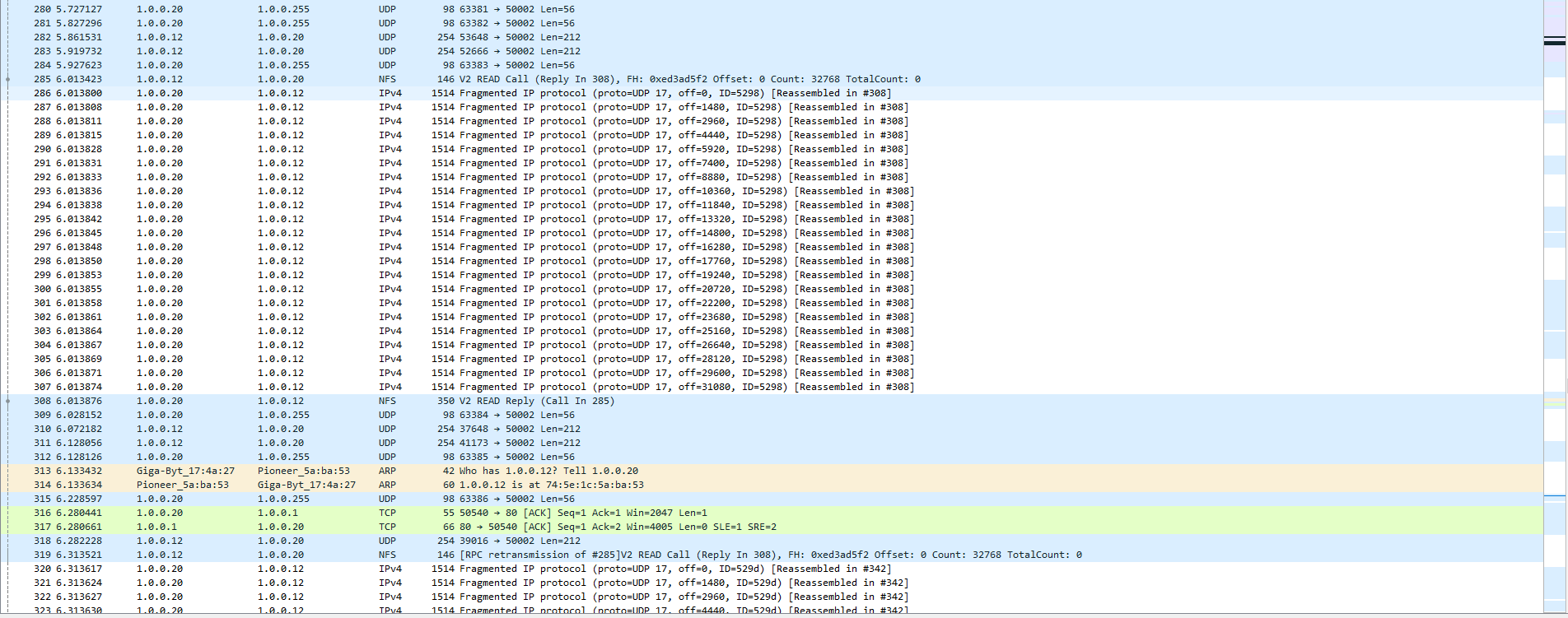

I did some debugging and this is how communication betweend two devices look like when I press load on controller:
It looks like first set of data hasn't been received by controller, as it replies that retransmission is needed. Don't mind network addressation here - I changed network to 192.168.2.0/24 and the same thing happen.
I think something has to be unlocked on the router. Any thoughts what can it be?
To troubleshoot, try connecting your computer DIRECTLY to the player, bypassing the router. We always recommend unmanaged network switches instead of routers which may use network security, or traffic management and shaping.
Publicação fechada para comentários.
Hi!
I've seen similar issues when UPNP is enabled on the gateway device. Have also seen this issue when Layer 2 client isolation (also referred to as PVLAN) is enable on the gateway device, or intermediate switch matrix. I once connected my CDJs to a Catalyst which had PVLAN configured, and it breaks broadcast, which the Pro DJ Link relies heavily on.
I'm having a hard time reading your Wireshark snippet, so if you could share the .pcap, that'd be nice! :)
Hi Tord!
Thank you for your hints. I'll check upnp and pvlan.
Here is pcap loaded on wetransfer:
https://we.tl/Z17jcHEozB
